2-Post Lift Floor Cover Plate JESAN No.1 PL-4.0-2B (Swiss Type)
Couldn't load pickup availability
Stay connected with us on social media for the latest updates and promotions!
Technical Documents
Technical Data Sheet Products Description
JESAN No.1 PL-4.0-2AS – Overhead Cover Plate Two-Post Vehicle Lift

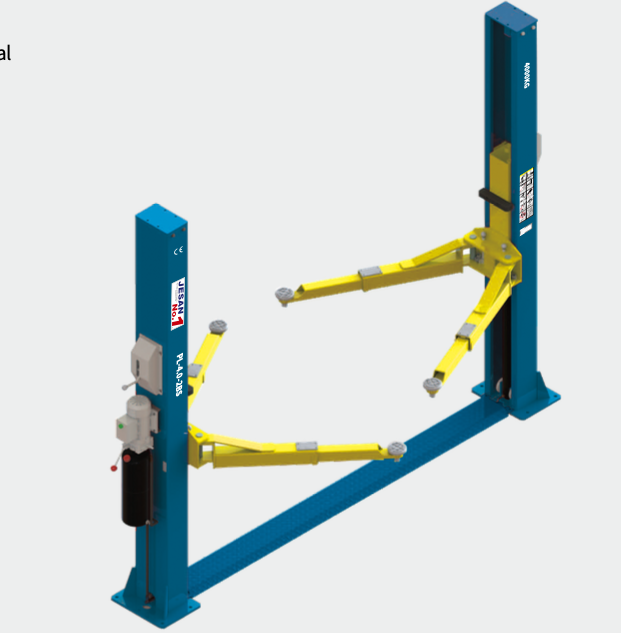

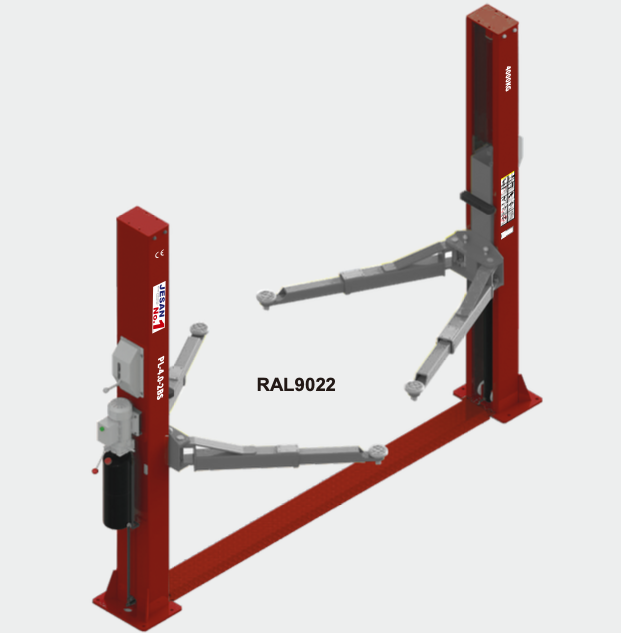

The JESAN No.1 The PL-4.0-2BS is a floor cover plate two-post vehicle lift with a 4,000 kg capacity, designed for workshops that require a clean floor finish with no exposed hydraulic lines or cables running across the bay. Sharing the same proven safety architecture as the 2AS, it comes standard with car door protection, an automatic all-steel arm-locking device, synchronization cables for precise parallel lifting, and adjustable lifting pads to two heights. The arm configuration includes two two-stage arms and two three-stage arms for maximum reach and vehicle compatibility. Available in a bold yellow/blue finish or the classic RAL9022 grey-silver colour. Optional accessories include 70 mm and 100 mm height adapters (4 pcs each), an arm pad, and a dust protection cover.
Price Does not include Installation
Manufacturer's Code: PL-4.0-2BS
COO (Country of Origin): China
Products Specifications
| Specification | Details |
|---|---|
| Model | PL-4.0-2BS |
| Type | Floor Cover Plate Two-Post Vehicle Lift |
| Capacity | 4,000 kg (4.0 Ton) |
| Lifting Height | 1,900 mm |
| Min Pad Height | 110 mm |
| Max Car Width | 2,806 mm |
| Lock Release | Single Manual Lock Release |
| Arm Configuration | 2× two-stage arms + 2× three-stage arms |
| Power Supply | 220V / 1PH / 50–60Hz / 2.2KW · 220/380V / 3PH / 50–60Hz / 2.2KW |
