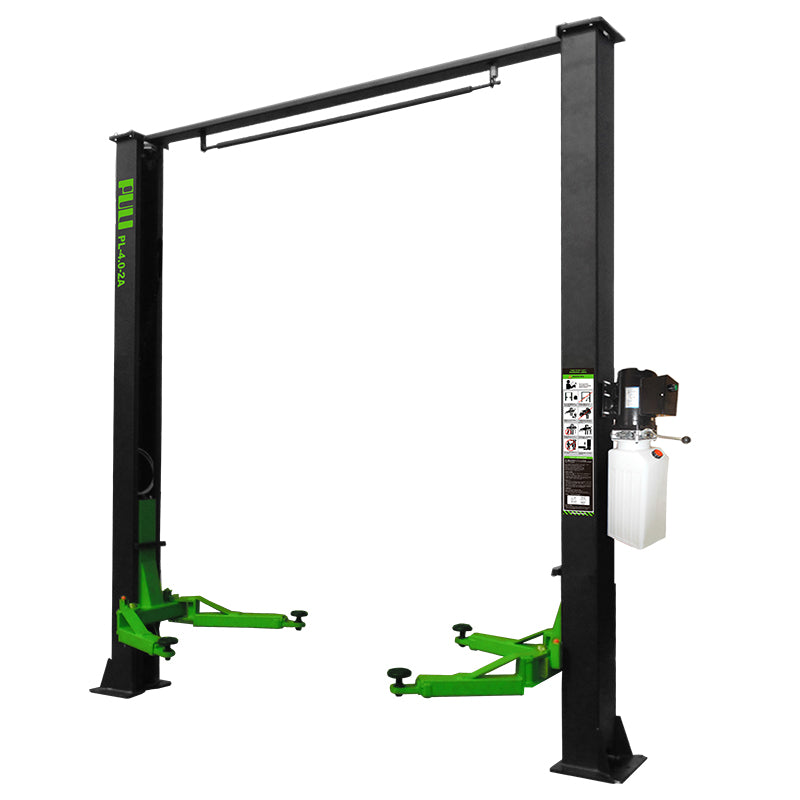

JESAN No.1 PL-4.0-2A – Arch Type Clear Floor Two-Post Vehicle Lift
The JESAN No.1 PL-4.0-2A is a professional clear-floor asymmetric two-post vehicle lift engineered for high-performance automotive workshops and service centers. Designed with an arch-type overhead structure, this lift provides unrestricted floor access between the columns while maintaining excellent stability and synchronization.
With a 4000 kg lifting capacity, the PL-4.0-2A can safely handle passenger cars, SUVs, vans, and full-size pickup trucks. The asymmetric arm configuration and rotated columns allow vehicle doors to open freely, improving driver access and workshop efficiency.
The lift incorporates a heavy-duty hydraulic drive system, synchronized steel cables, chrome-plated hydraulic cylinders, and advanced safety systems to ensure reliable long-term operation in demanding workshop environments.
Price Does not include Installation
Manufacturer's Code: PL-4.0-2A
COO (Country of Origin): China
Products Specifications
| Specification | Details |
|---|---|
| Brand | JESAN No.1 |
| Model | PL-4.0-2A |
| Product Type | Arch Type Clear Floor Two-Post Vehicle Lift |
| Lift Configuration | Asymmetric Clear Floor |
| Lifting Capacity | 4000 kg (4.0T) |
| Maximum Lifting Height | 1850 mm (72.8") |
| Minimum Pad Height | 110 mm (4.3") |
| Maximum Vehicle Width | 2576 mm (101.4") |
| Power Supply (Single Phase) | 220V / 1PH / 50–60Hz / 2.2KW |
| Power Supply (Three Phase) | 220V–380V / 3PH / 50–60Hz / 2.2KW |
| Lock Release System | Dual Manual Lock Release |
| Hydraulic System | Direct-drive cylinders |
| Safety System | Height limit switch + mechanical safety locks |
Main Features
- Clear-floor asymmetric two-post lift design
- 4000 kg lifting capacity
- Suitable for cars, SUVs, vans, and light trucks
- Rotated asymmetric columns improve door clearance
- Single-piece heavy-duty column construction
- Direct-drive hydraulic cylinders
- Synchronized dual steel cable system
- Manual safety lock release from one side
- Height limit safety switch protects vehicle roof
- Low-profile lifting pads suitable for sports cars and SUVs
- Aluminum motor included as standard
- Car door-opening protection system
- Chrome-plated hydraulic cylinders with Italian seals
- Passed 115% dynamic load testing
- Passed 150% static load testing
