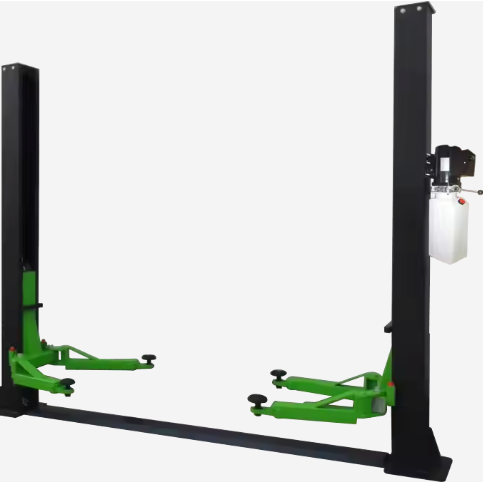

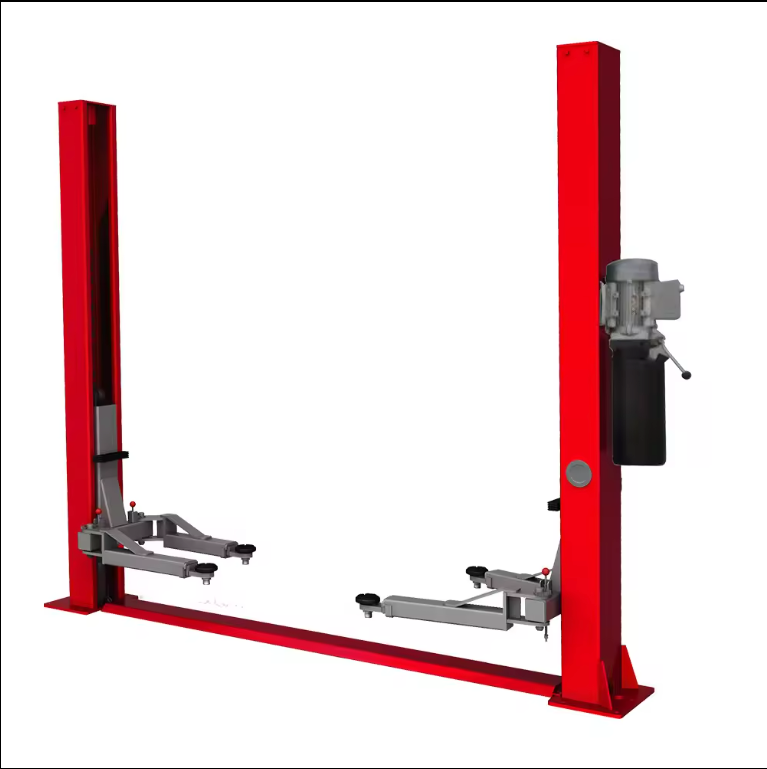

JESAN No.1 PL-4.0-2B – Floor Cover Plate Two-Post Vehicle Lift
The JESAN No.1 PL-4.0-2B is a professional floor cover plate two-post vehicle lift designed for automotive workshops, tire centers, and professional maintenance facilities. Engineered with a reinforced base-plate structure, the PL-4.0-2B combines heavy-duty lifting performance with enhanced safety, durability, and user-friendly operation.
With a 4000 kg lifting capacity, this lift is suitable for passenger cars, SUVs, vans, and light commercial vehicles. The redesigned structure includes single-piece columns, hidden cable and hose routing, improved synchronization, and multiple safety features, making it one of the most reliable and cost-effective two-post lifts in its category.
Its low-profile lifting pads and compact width allow efficient operation even in tighter workshop environments while still accommodating larger vehicles.
Price Does not include Installation
Manufacturer's Code: PL-4.0-2B
COO (Country of Origin): China
Products Specifications
| Specification | Details |
|---|---|
| Brand | JESAN No.1 |
| Model | PL-4.0-2B |
| Product Type | Floor Cover Plate Two-Post Vehicle Lift |
| Lift Configuration | Floor Plate / Base Plate Type |
| Lifting Capacity | 4000 kg (4.0T) |
| Maximum Lifting Height | 1800 mm (70.9") |
| Minimum Pad Height | 110 mm (4.3") |
| Maximum Vehicle Width | 2576 mm (101.4") |
| Power Supply (Single Phase) | 220V / 1PH / 50–60Hz / 2.2KW |
| Power Supply (Three Phase) | 220V–380V / 3PH / 50–60Hz / 2.2KW |
| Lock Release System | Dual Manual Lock Release |
| Hydraulic System | Direct-drive hydraulic cylinders |
| Safety System |
Mechanical safety locks + safety hooks |
Main Features
- Heavy-duty floor cover plate two-post lift
- 4000 kg lifting capacity
- Elegant design with hidden cables and hydraulic lines
- Single-piece reinforced column construction
- Internal hose and cable routing for cleaner appearance
- Four safety hooks improve front/rear balance
- Reduced structural deformation and wear
- External safety lock system for easy inspection and maintenance
- Synchronized dual steel cable system
- Low-profile lifting pads suitable for sports cars and SUVs
- Adjustable swivel lifting pads with height adapters
- Rubber door protection guards included
- Aluminum motor included as standard
- Chrome-plated hydraulic cylinders with Italian seals
- Passed 115% dynamic load testing
- Passed 150% static load testing
