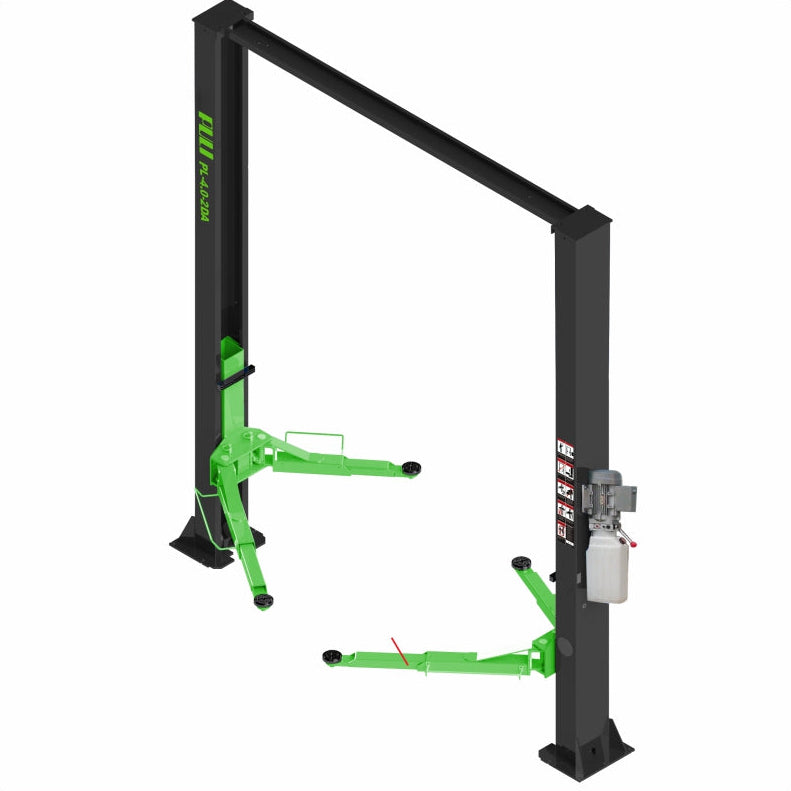

JESAN No.1 PL-4.0-2DA – Heavy-Duty Arch Type Clear Floor Two-Post Vehicle Lift
The JESAN No.1 PL-4.0-2DA is a commercial-grade symmetric clear floor two-post vehicle lift designed for professional garages and heavy workshop use. Built wider and taller than standard two-post lifts, the PL-4.0-2DA is ideal for workshops servicing larger vehicles while maintaining excellent lifting stability, durability, and safety.
Its top-beam clear-floor design provides unrestricted workspace between the columns, allowing technicians easier movement under the vehicle and better access for transmission jacks, tool carts, and workshop equipment.
With a 4000 kg lifting capacity, this lift is suitable for passenger cars, SUVs, vans, pickups, and light commercial vehicles. The heavy-duty symmetric arm configuration ensures balanced lifting performance for larger and heavier vehicles.
Price Does not include Installation
Manufacturer's Code: PL-4.0-2AD
COO (Country of Origin): China
Products Specifications
| Specification | Details |
|---|---|
| Brand | JESAN No.1 |
| Model | PL-4.0-2DA |
| Product Type | Arch Type Clear Floor Two-Post Vehicle Lift |
| Lift Configuration | Symmetric Clear Floor |
| Lifting Capacity | 4000 kg (4.0T) |
| Maximum Lifting Height | 1930 mm (76") |
| Minimum Pad Height | 90 mm (3.5") |
| Maximum Vehicle Width | 2610 mm (102.8") |
| Power Supply (Single Phase) | 220V / 1PH / 50–60Hz / 2.2KW |
| Power Supply (Three Phase) | 220V–380V / 3PH / 50–60Hz / 2.2KW |
| Lock Release System | Dual Manual Lock Release |
| Arm Type | Two-stage symmetric arms |
| Safety System | Mechanical safety locks + hydraulic protection |
Main Features
- Heavy-duty symmetric two-post vehicle lift
- Wider and taller commercial-grade structure
- Clear floor arch-type design
- 4000 kg lifting capacity
- Dual manual safety lock release
- Reinforced top beam structure
- Automatic all-steel arm locking system
- Vehicle door protection guards
- Foot protection safety device
- Hydraulic anti-explosion safety valve
- Chain protection system
- Adjustable lifting pads with two height positions
- Two-stage lifting arms
- Suitable for larger passenger vehicles and SUVs
