2-Post Lift Floor Plate Connection JESAN No.1 PL-4.0-2D
Couldn't load pickup availability
Stay connected with us on social media for the latest updates and promotions!
Technical Documents
Technical Data Sheet Products Description

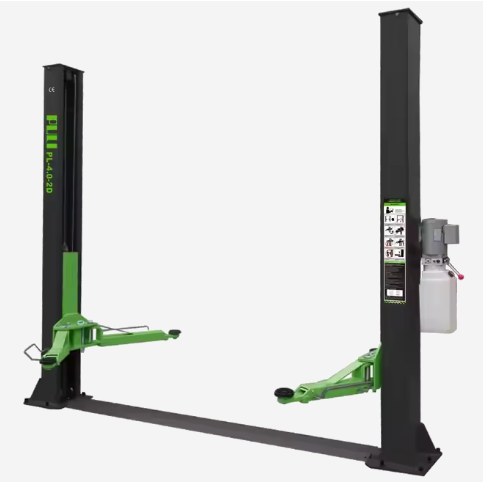

JESAN No.1 PL-4.0-2D – Floor Cover Plate Two-Post Vehicle Lift
The JESAN No.1 PL-4.0-2D is a professional heavy-duty floor cover plate two-post vehicle lift designed for modern automotive workshops and commercial service centers. Combining robust construction, advanced safety systems, and a compact floor-plate configuration, the PL-4.0-2D offers reliable lifting performance for passenger vehicles, SUVs, vans, and light commercial vehicles.

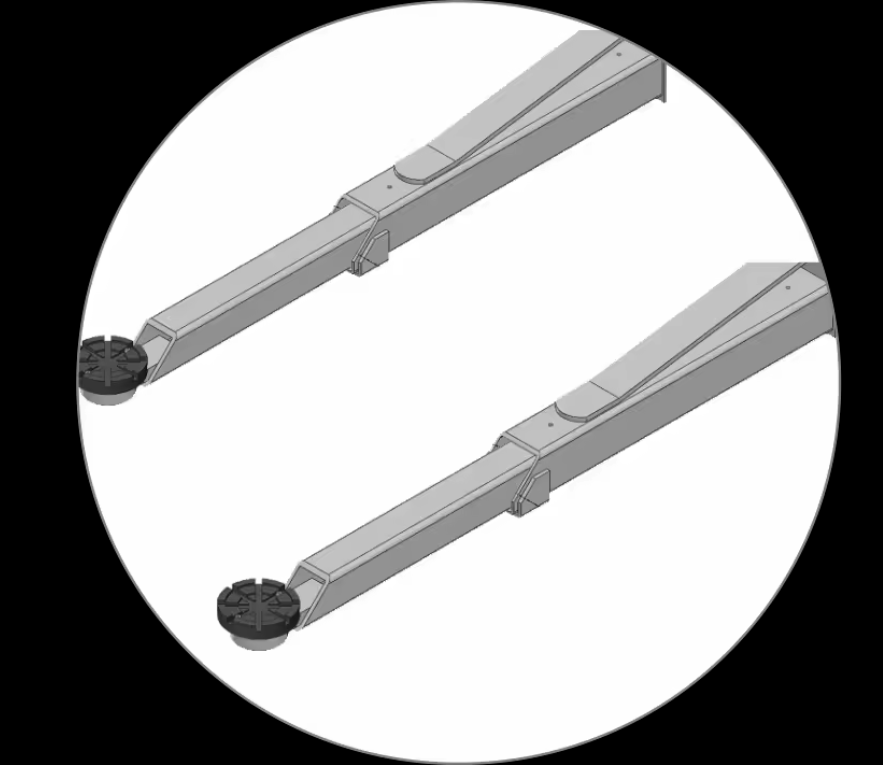

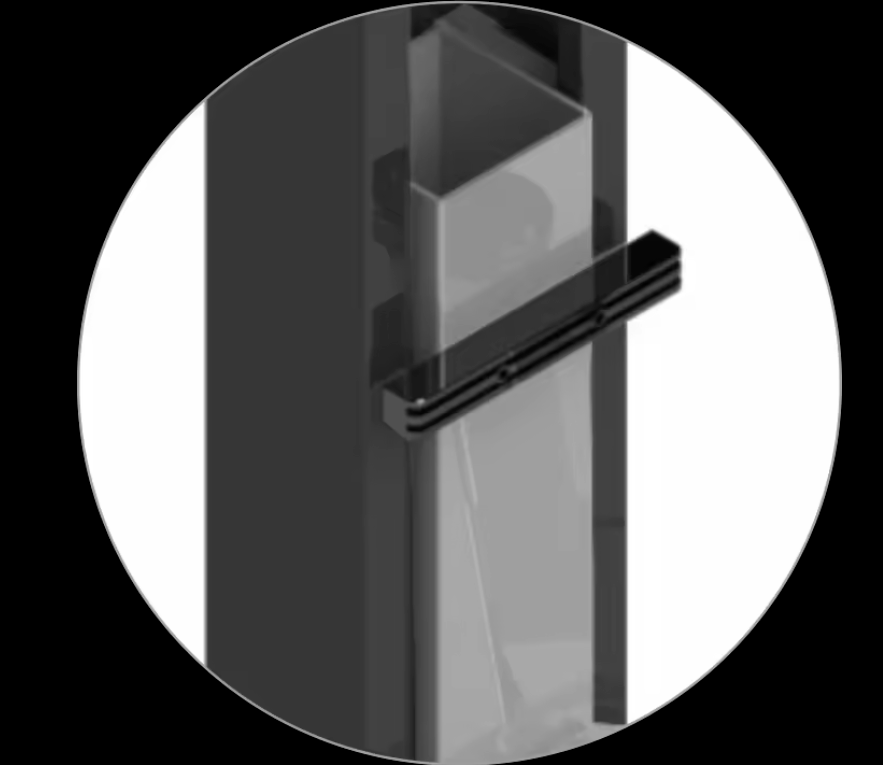

This redesigned model incorporates premium features such as single-piece reinforced columns, hidden hose and cable routing, synchronized steel cable operation, adjustable swivel pads, and multiple mechanical safety protections, making it an excellent solution for workshops seeking durability, safety, and value.
Its low-profile lifting pads and compact design allow easy handling of both low-clearance vehicles and larger SUVs while maximizing workshop efficiency.
Price Does not include Installation
Manufacturer's Code: PL-4.0-2D
COO (Country of Origin): China
Products Specifications
| Specification | Details |
|---|---|
| Brand | JESAN No.1 |
| Model | PL-4.0-2D |
| Product Type | Floor Cover Plate Two-Post Vehicle Lift |
| Lift Configuration | Floor Plate / Base Plate Type |
| Lifting Capacity | 4000 kg (4.0T) |
| Maximum Lifting Height | 1930 mm (76") |
| Minimum Pad Height | 90 mm (3.5") |
| Maximum Vehicle Width | 2500 mm (100") |
| Power Supply (Single Phase) | 220V / 1PH / 50–60Hz / 2.2KW |
| Power Supply (Three Phase) | 220V–380V / 3PH / 50–60Hz / 2.2KW |
| Lock Release System | Dual Manual Lock Release |
| Hydraulic System | Direct-drive hydraulic cylinders |
| Safety System |
Mechanical safety locks + safety hooks |
